Designed for machine tools

No backlash or reversal errors

Efficient fluid-cooling thermal barrier

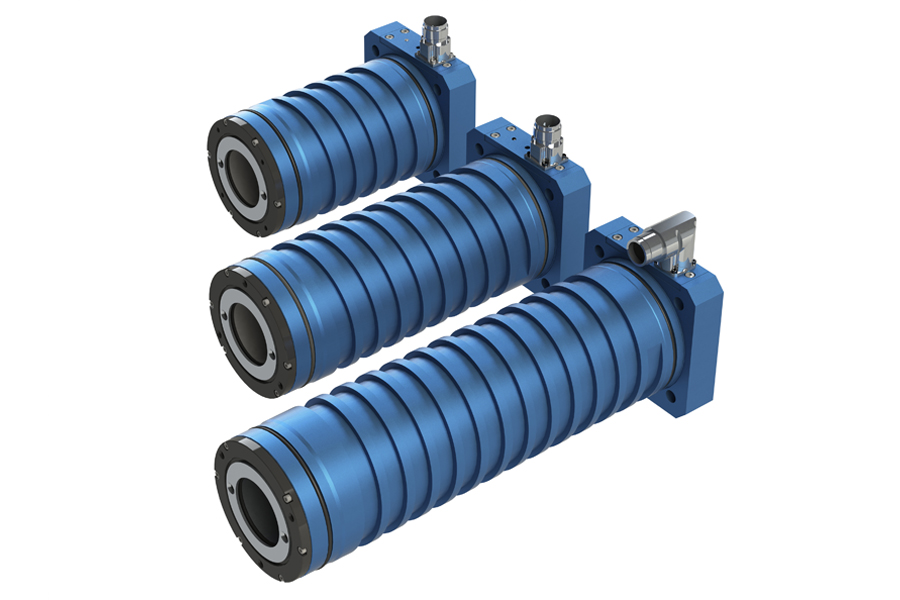

The LinX® S-Series Linear Motor

The innovative LinX® cylindrical Linear Motor (international patent pending) offered by ANCA Motion provides improved performance at lower cost when compared to conventional flat linear motors and rotary motors.The high speed and acceleration, standalone thermal stability and the ability to achieve high IP67 protection make LinX® an ideal solution for machine tools, food processing and other automation industries.
  • Product Details
    ANCA Motion’s tubular LinX® Linear Motors consist of a shaft containing magnets and a forcer containing wound copper coils. The symmetric design results in zero attractive forces between the forcer and shaft, greatly reducing the loading requirement on support bearings. With LinX® Linear Motors simple construction, non-critical air gap and no physical contact between shaft and forcer, machine manufacturers can greatly simplify installation, reduce maintenance and extend machine life. The LinX® Linear Motors range is designed to allow easy replacement of ball screws and pneumatic cylinders in existing machine designs.
    High efficiency and zero down force enable extended machine life.
    IP67 protection level
    Simplify machine integration

    Contact our LinX distributor in the UK

  • Technical Specifications

    Technical Specifications

    Forcer Optimized for fluid-cooling
    H class motor
    680VDC bus voltage
    Shaft 180mm magnetic pitch
    Neutral magnetic field
    Stainless steel tube
    Wide stroke range
    Capabilities Standalone thermal stability
    Zero backlash
    Superior position performance

Download CAD Models

Interested in downloading CAD models for the LinX® S-Series?
Follow the link to get access to motors, shafts, and accessories.

Download CAD Files
