AMC6

AMC6 CNC

Products / CNC / CNC

Powerful and robust CNC control unit for machine tool applications

i5 Processor

Intel® Core i5 processor

EtherCAT® fieldbus

Industry leading EtherCAT® fieldbus

Ease of Operation

Windows® 10-based operating system

Download the manual

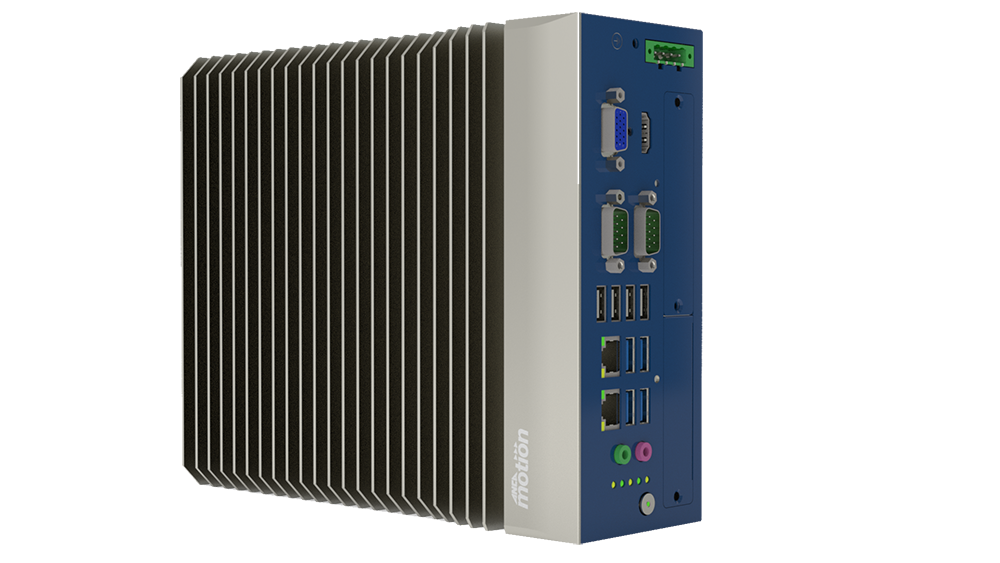

AMC6 CNC


The fan-less AMC6 CNC adopts the latest generation of Intel® processor, making it an ideal solution for industrial applications. Our system combines machine and HMI processes within a single unit, increasing overall system speed and performance.


ANCA Motion provides a complete motion control solution to any application; learn more
Download PDF Request a Quote
  • Product Details
    AMC6
    ANCA Motion’s innovative CNC systems comprise of both hardware and software solutions that are developed to be robust and flexible for a range of industries.
    For the past 40 years we have strived to be leaders in development of machine systems.
    FULL POWER
    The AMC6 CNC uses one of the latest Intel® i5 processors and a solid state drive to achieve high processing and writing speeds.

    ONE SOLUTION
    Our system combines machine and HMI processes within a single unit, increasing overall system speed and performance
    FULL ACCESS

    Open system architecture allows you to access and develop programs within the CNC itself
  • Technical Specifications

    Technical Specifications

    Overview Processor: Intel® Core i5, Memory: 8GB DDR4 RAM, Storage: 64GB mSATA SSD, Networking: 2 x GbE LAN
    USB: 4x USB2.0 ports, 4x USB3.0 ports, Voltage: 20-28VDC Input, Operating System: Windows® 10 OS
    Real-time Extension: TenAsys INtime, Field Bus: EtherCAT® / SERCOS, Axes: 20
    System Intel® Core i5 processor, 8GB DDR4 RAM, 64GB mSATA SSD, Windows® 10 OS
    Power Supply 20-28VDC Input, 116W Power Consumption
    Communication 100Mbps, EtherCAT® fieldbus, SoE profile IEC 61491
    Connection 4x USB2.0 ports, 4x USB3.0 ports, 2x RJ-45 ports, 2x Serial COM ports, 1x audio output, 1x HDMI port, 1x VGA port
    Special Features Virus protection, Open system architecture, Software PLC, Hard real-time performance via kernel extensions
